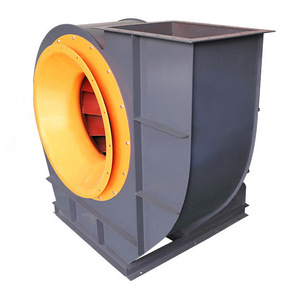

POUPULA Y4-73 boiler centrifugal induced draft fan 200000 air volume fan 300000 large air volume fanIssuing time:2024-04-18 17:12 POUPULA Y4-73 boiler centrifugal induced draft fan 200000 air volume fan 300000 large air volume fan Type G4-73 and Y4-73 boiler fans are used for a fan system of 2~670T/h steam boilers in a thermal power plant . Also , the G4-73 can be used for ventilation of mine in a general ventilation , Ventilator conveying medium for air , the highest temperature shall not exceed 80℃ and induced draft fan conveying medium forflue gas , the highest temperature shall not exceed 250℃ . Moreover , G4-73 is equipped with Type A Reloadable Motor . The type of general ventilation motors are made according to an E-class standard and the type of High-temperature motor is made of high-temperature resistant materials.For heat dissipation , a cooling wind wheel is added to the lengthened shaft between the impeller and the motor housing , which can effectively block the heat transmitted by the impeller,The structure of G4-73 is simple.

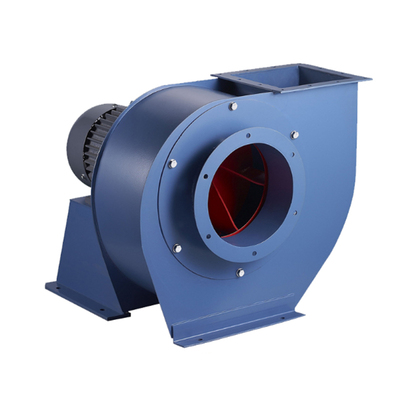

POUPULA C6-46 (A.C type) Dust Removal Centrifugal Fan 5.5kw Fan 4kw 7.5kw It is suitable to expel air with dirt , wood scraps and fine fiber . It can also be used for ventilation with the temperature of air below 80℃.Made up of 6 forward curved blades , the fan is not easy to wear and amass dirt . This series consist of A drive type , C drive type as well as D drive type.

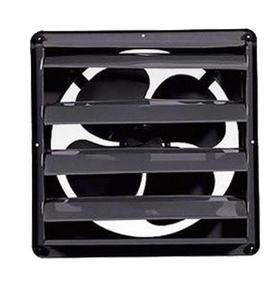

POUPULA FAD (S) series energy-saving square ventilation fan 45 square exhaust fan FAD(S) adopts CAD optimized design,its electricity consumption is lower thanthe national (China) standard. Featured by large ain volume and low noise, itis widely used forventilation offactory, warehouse, office, residential and etc.

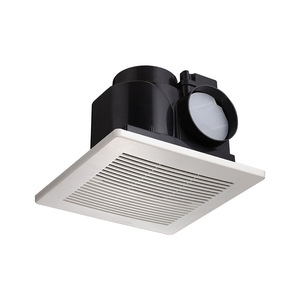

POUPULA BPT series ceiling duct ventilation fan, 6-inch exhaust fan, 8-inch exhaust fan Through the design of air ducts, combined with high-efficiency and long-life ball bearing motors. Optimize the energy efficiency of the product, suitable for uninterrupted ventilation. Widely used for ventilation in hotels, department stores, entertainment venues, and residential buildings.
|
