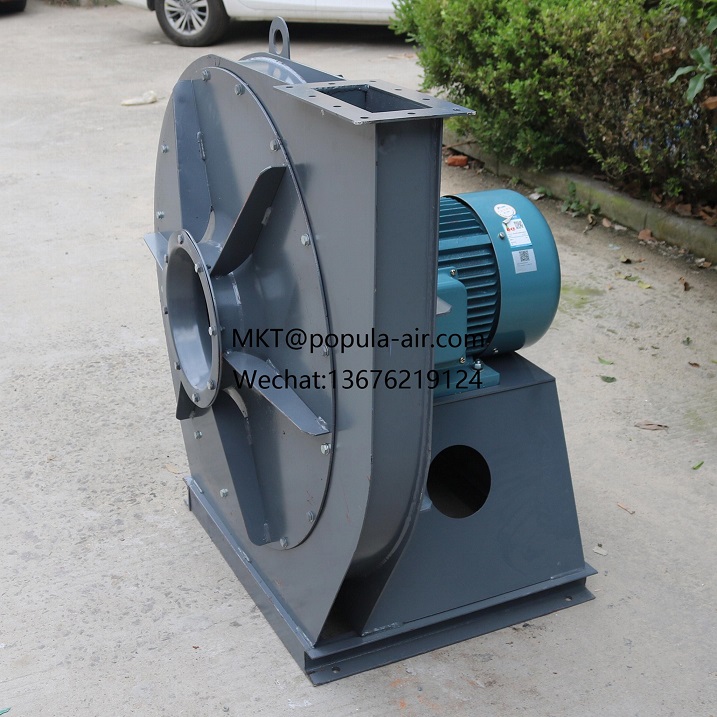

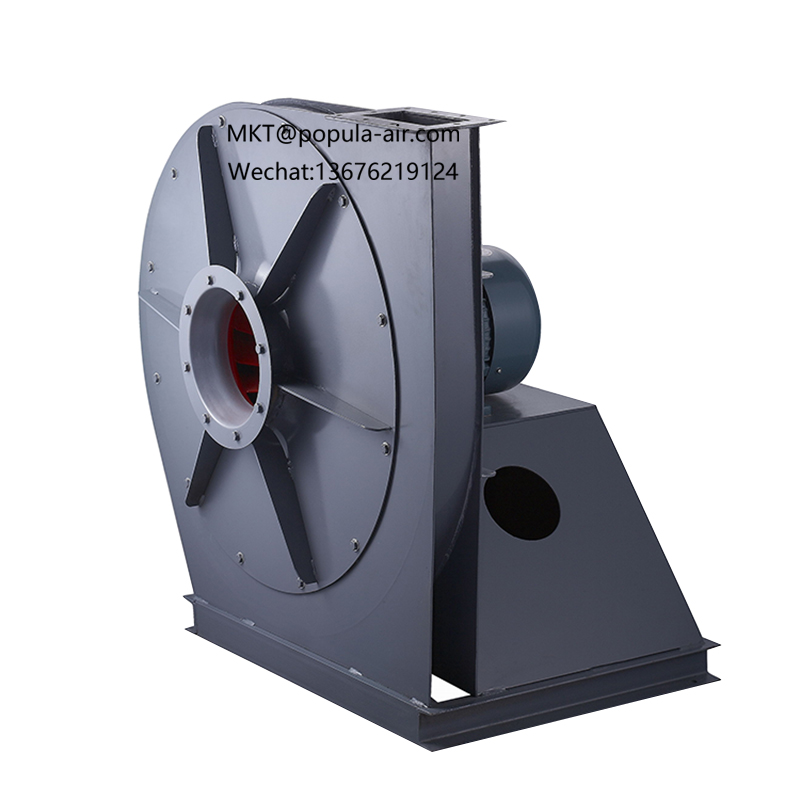

POPULA Fan 9-12 High Pressure Centrifugal Fan Cupola Carton Machinery Special High Pressure

Product Introduction:

9-12(A) type is the professional fans designed for Cupola furnace and carton machine. The air transferred shall not contain any corrosive, not spontaneous combustion and adhesive material,dust and grain and the concentration shall not exceed 150mg/m³, with the temperature no higher than 80°C.

PRODUCTS INFO:

Type:POPULA High pressure Industrial centrifugal fan 9-12

Brand:POPULA

Electric Current:AC

Power: 5.5-45 KW

Voltage:1HP/3HP 110V/220V/380V/440V/3KV/6KV

Frequency: 50/60HZ

Air Volume:1000~8092 CMH

Air Pressure:2065-12953 Pa

Speed:2900-2970 rpm

Max Noise:<72

Size: 50-77CM

Weight: 85KG

Blade Material:Carbon steel

Mounting:floor standing

Driving Mode:Direct motor driving

Color:can be customized

HS Code:8414593000

Application:Air supply, air exhausting, material conveying

Tags:Industrial centrifugal fan ,exhaust fan ,High Pressure fan

BUSINESS POLICY

Leadtime:1 days for samples and 10days for bulk after the payment

Payment: T/T, Paypal, Moneygram,Western union

Delivery: by sea/air/land/courier

Packing: Standard packing for long distance delivery

Certification:Follow   ROHS,CE,CCC,UL,ETL and ISO2008 9001 system

MOQ: 1

Warranty:One year

Price: negotiable for big QTY order
